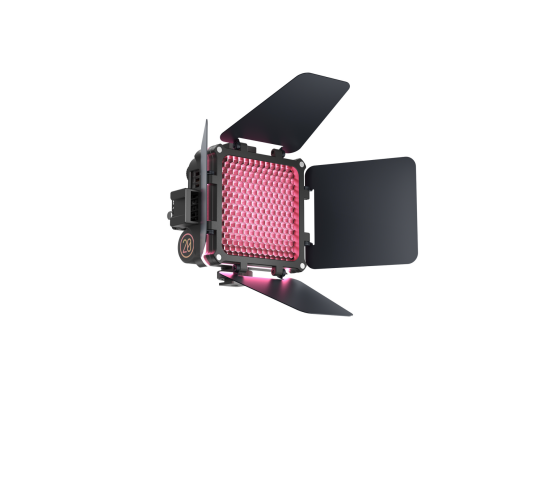

ZHIYUN FIVERAY M20C | 20W RGB Portable LED Video Light
- 20W Full-Color RGBWW:Packs a high-output 20W RGBWW engine into a pocket-sized body for vibrant full-spectrum color creation.
- High Illuminance Performance:Delivers a peak 2,010 Lux (at 0.5m) with 2500K-10000K CCT range and high CRI ≥94 / TLCI ≥96 color fidelity.
- Built-in Magnetic Extension:Features dual-side magnetic mounts to attach effortlessly to metal surfaces or stack multiple light units together.
- DynaVort™ Active Cooling:Integrated fluid dynamics cooling fan prevents thermal throttling during continuous 20W high-power operation.
- FX Lighting & App Control:Supports 16 built-in FX light effects, G/M fine-tuning, and ZY Vega Bluetooth app control for wireless light setup.
Specification
What's in the Box
FAQs
What are the main differences between the M20C and the M20?
Color Temperature:
M20C: 2500K–10000K (Wide range)
M20: 2700K–6500K (Standard CCT)
Color Capabilities:
M20C: Features full-color RGB with adjustable red and green tones.
M20: Bi-color fill light.
Lighting Effects:
M20C: 16 FX modes (10 standard + 6 RGB).
M20: 10 standard FX modes.
Control & Connectivity:
M20C: Supports Bluetooth mesh networking for multi-light remote control.
Output Performance:
M20C: Peak illuminance of 1950 Lux (CRI ≥94, TLCI ≥96).
M20: Peak illuminance of 2010 Lux (CRI ≥95, TLCI ≥97).
What is the positioning of the M20 series?
The ZHIYUN FIVERAY M20 series is a pocket-sized fill light—no larger than a sticky note—that packs a 20W high-power output, professional dimming, expandable magnetic accessories, and a sleek design directly into your pocket.
How is the color rendering and performance of the M20 series?
Both lights deliver low-flicker fill lighting with parameter memory capabilities for fast scene setup upon startup.
ZHIYUN FIVERAY M20C:
Color Temperature: 2500K–10000K
Color Accuracy: CRI ≥94 | TLCI ≥96
Peak Illuminance: 1950 Lux

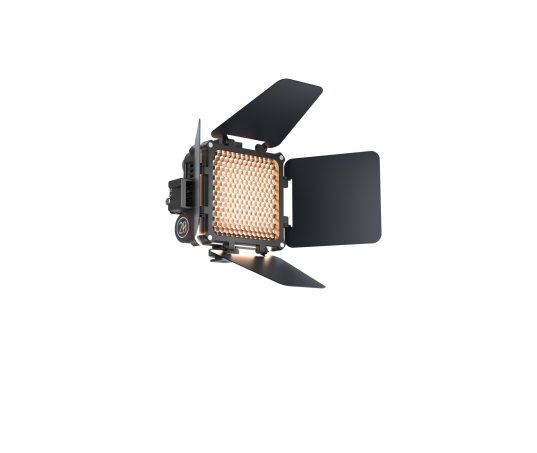

ZHIYUN FIVERAY M20:
Color Temperature: 2700K–6500K
Color Accuracy: CRI ≥95 | TLCI ≥97
Peak Illuminance: 2010 Lux
How does the thermal management/heat dissipation work?
Both models feature the custom-designed MARK II electronic back-pressure cooling system. This technology:
- Reduces heat sink thickness.
- Optimizes airflow pathways and lowers air resistance.
- Overcomes thermal constraints in compact builds to sustain continuous 20W output.
What light-shaping accessories are available?
The M20 series uses a dual-side magnetic expansion bracket and cold shoe mount to support cinema-grade modifiers:
- Modifiers: Diffusion filter, honeycomb grid, and barn doors (can be used individually or stacked).
- Multi-Light Setup: Supports series connection across multiple units for synchronized lighting setups.
What is the battery life, and how is it charged?
The series supports PD fast-charging protocols, enabling simultaneous charging and operation via power banks or wall chargers.
- Runtime Specs (at 4300K):20W
- (Full Power): ~40 minutes
- 10W: ~1 hour 20 minutes
- 5W: ~3 hours
What is included in the M20C kit options?
Standard Edition:

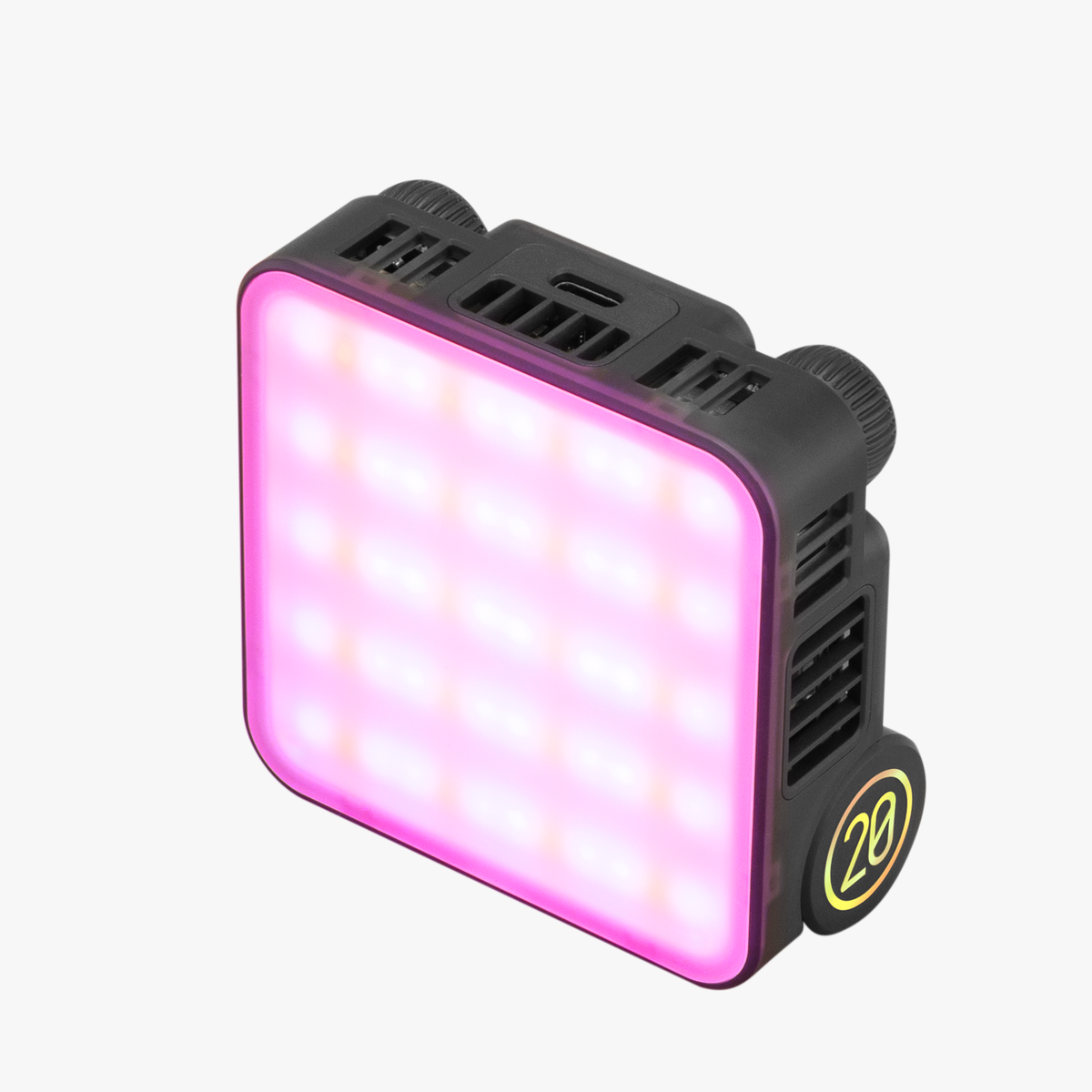

M20C Main Unit ×1

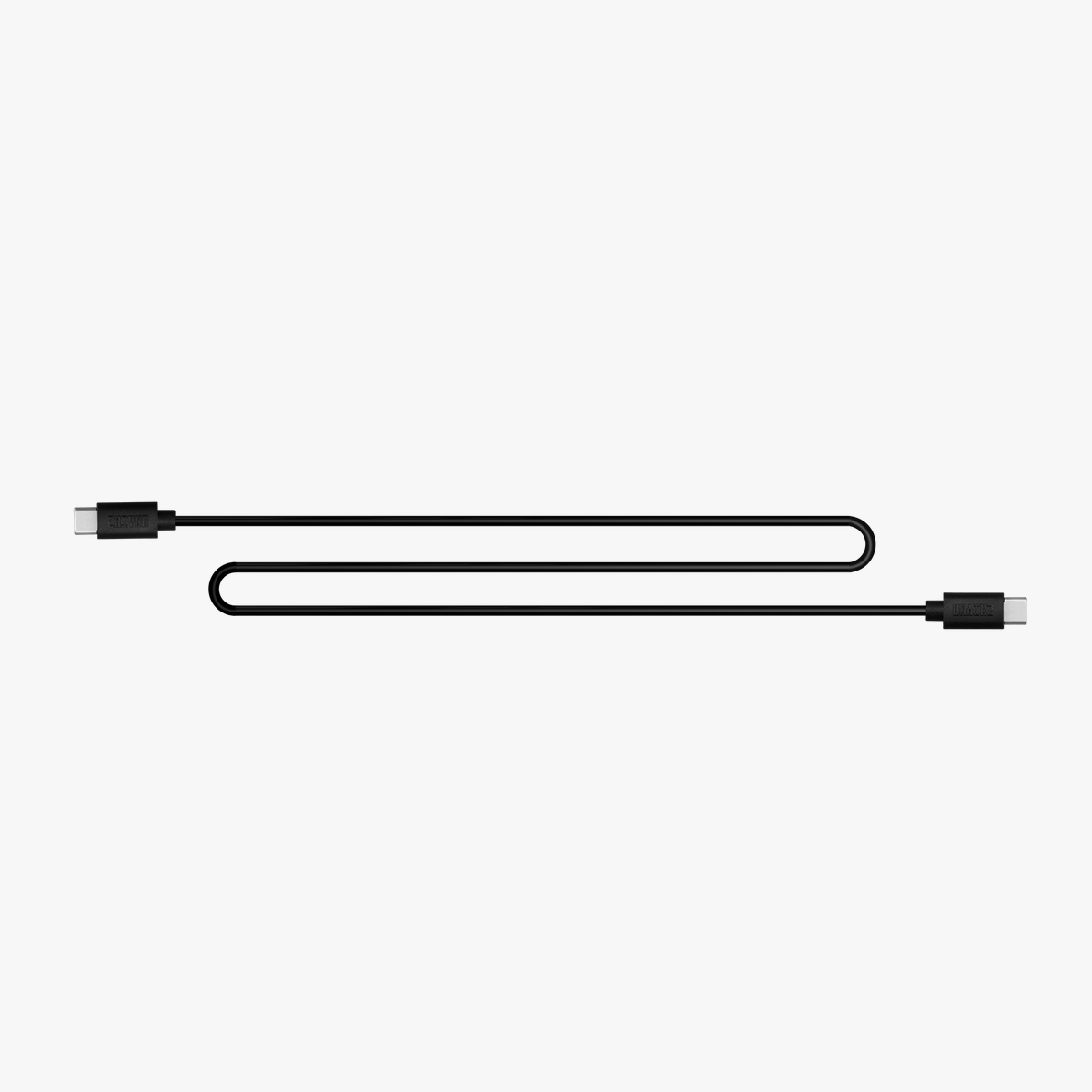

USB Charging Cable ×1
Quick Start Guide ×1

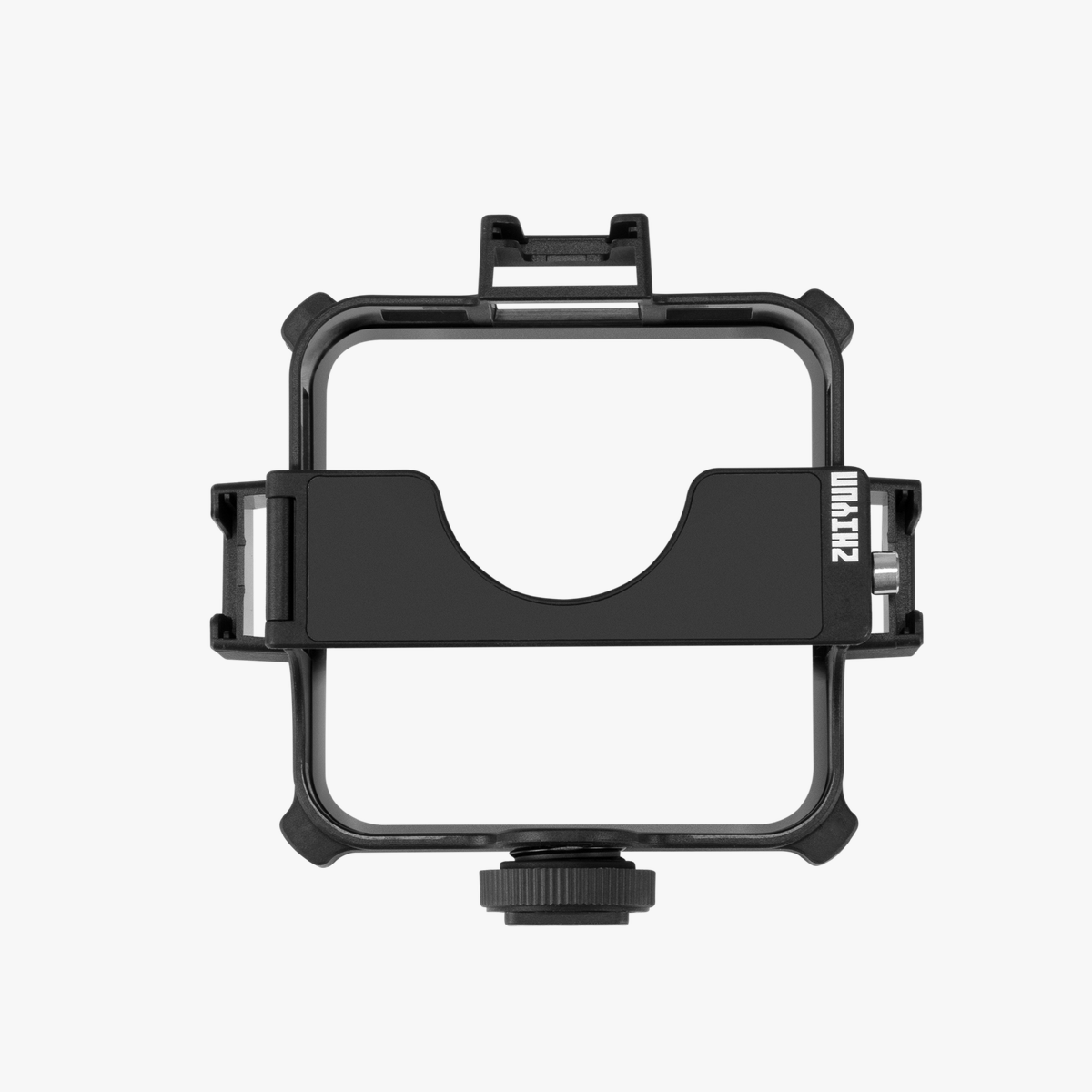

Expansion Bracket ×1
COMBO Edition:
M20C Main Unit ×1
USB Charging Cable ×1
Quick Start Guide ×1
Expansion Bracket ×1

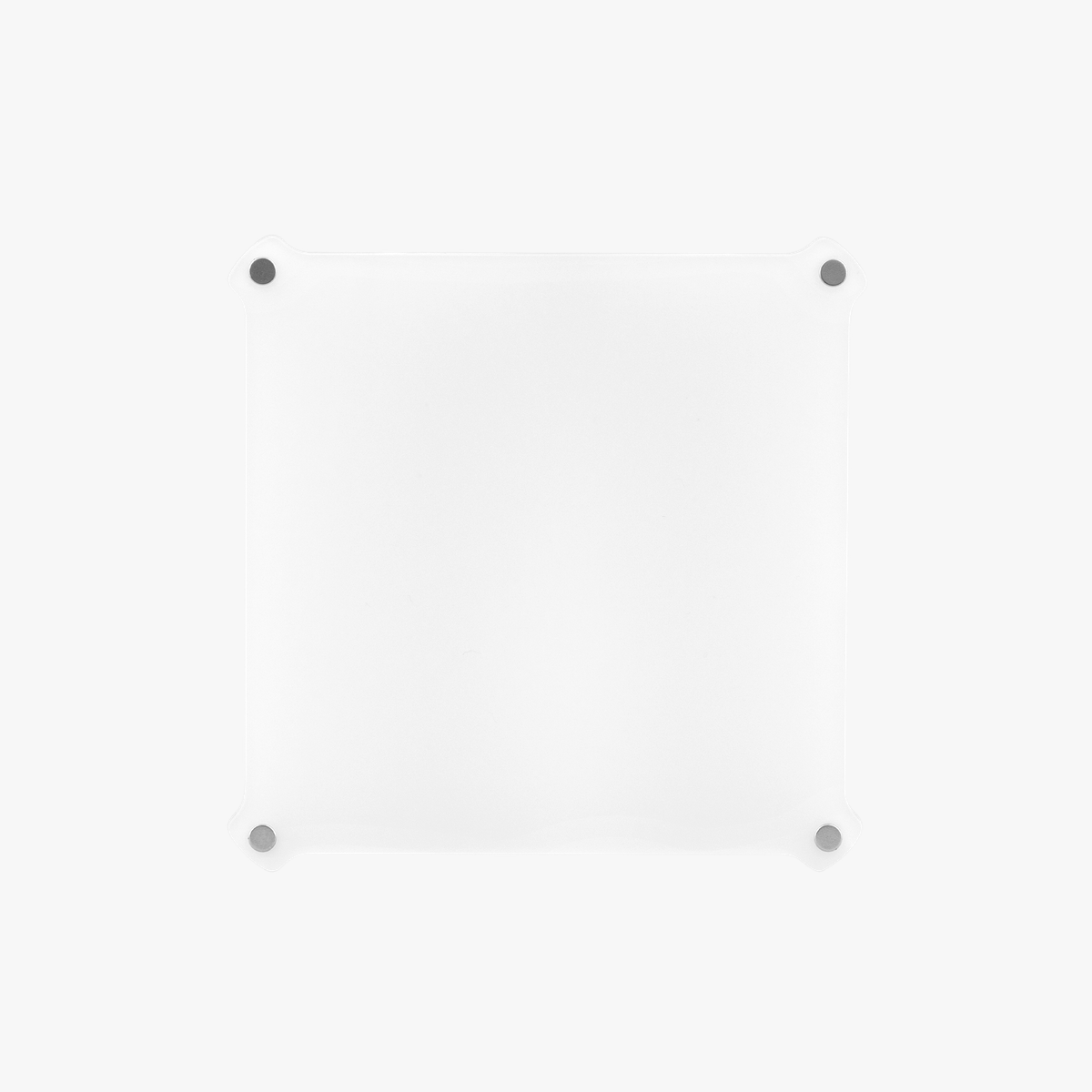

Diffusion Filter ×1

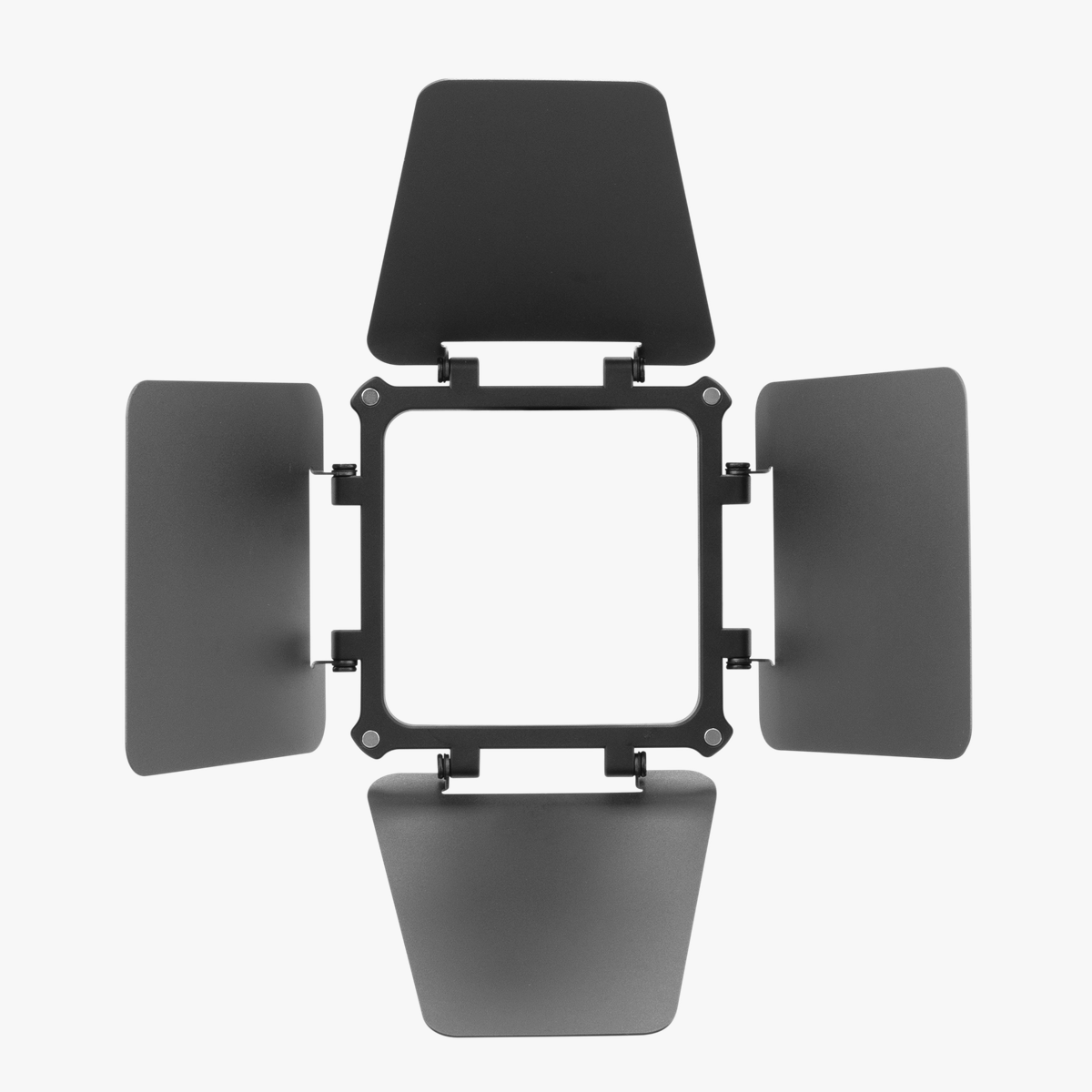

Barn Doors ×1

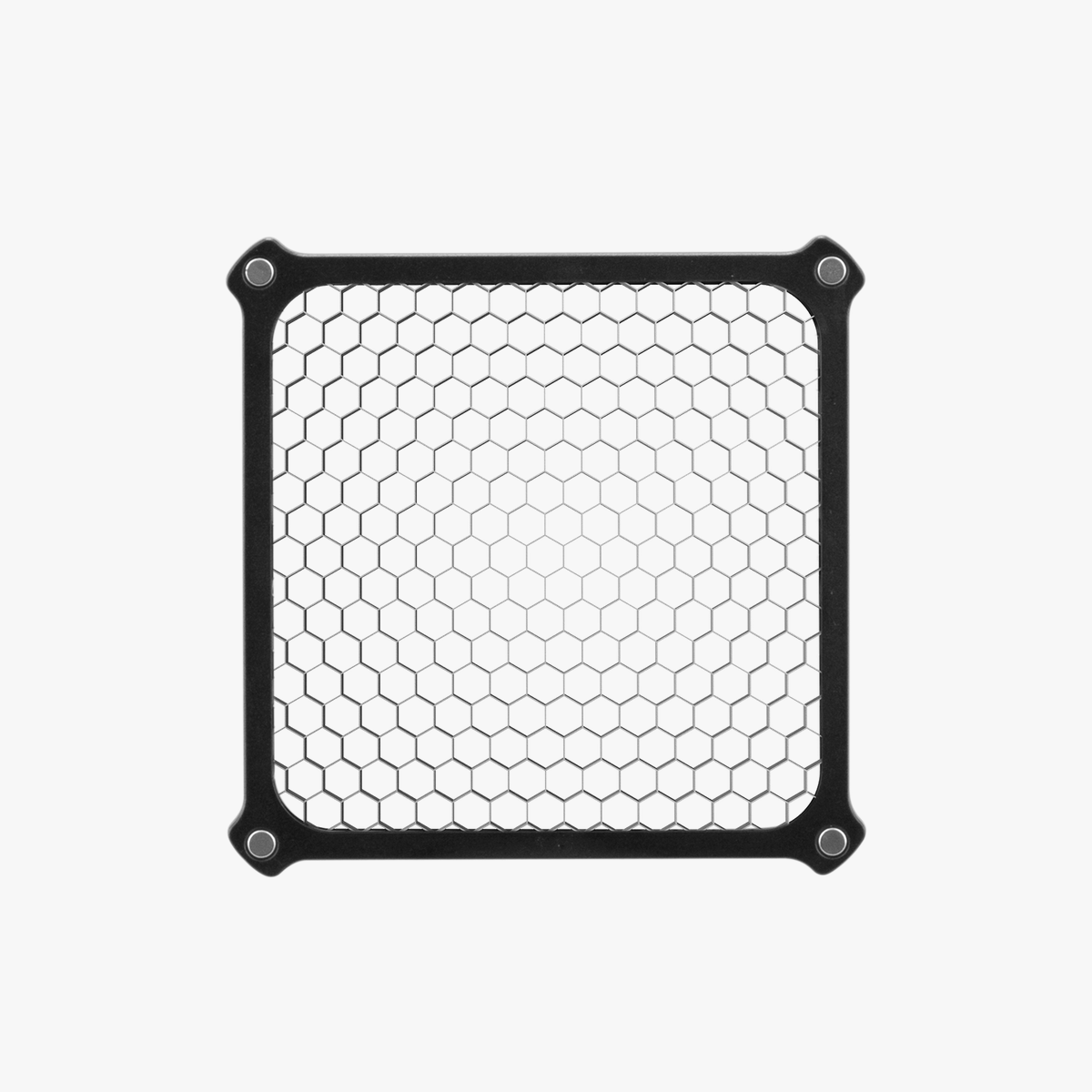

Honeycomb Grid ×1

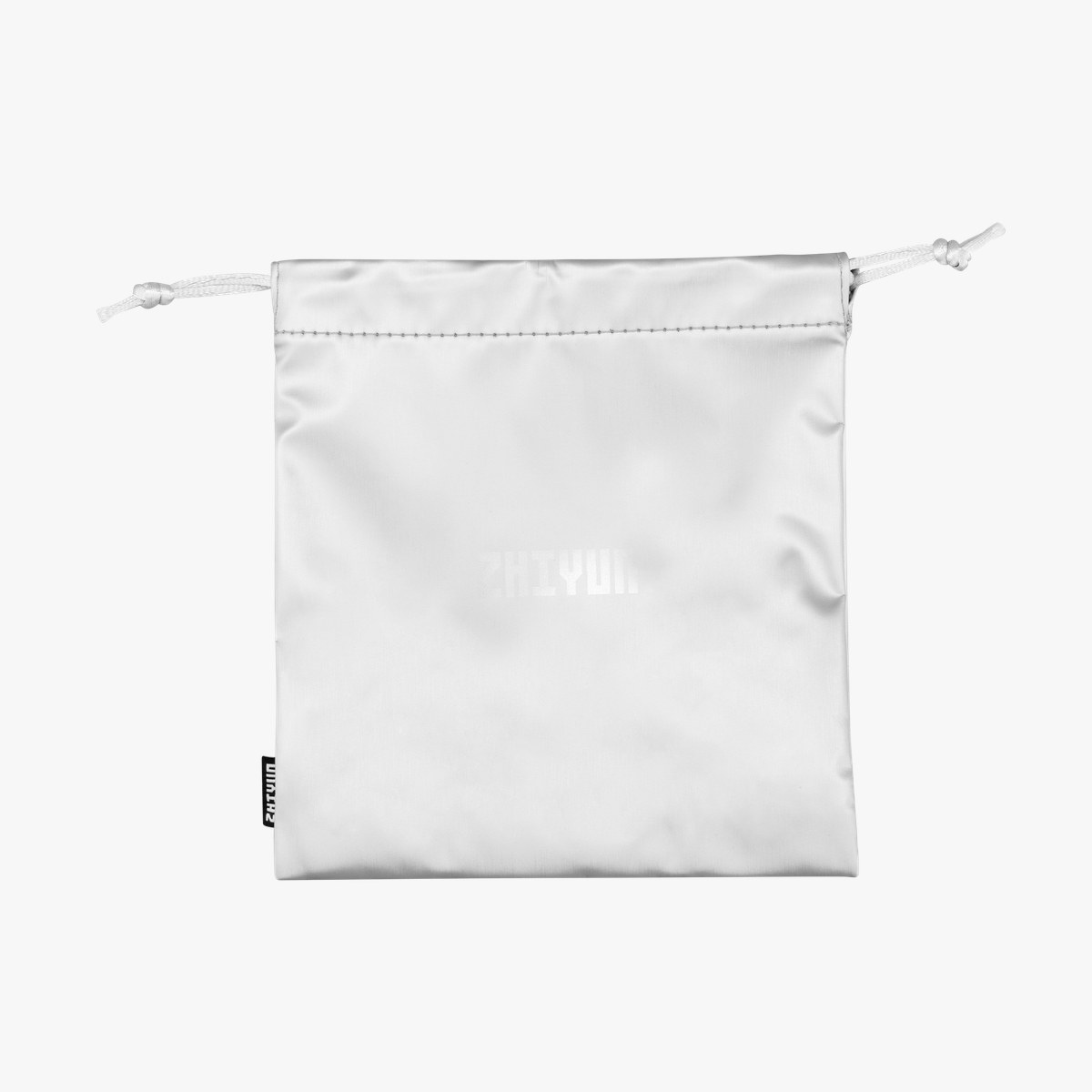

Storage Pouch ×1
What creative mounting options does the M20 series offer?
Magnetic Attachment: Easily mounts onto metal surfaces such as desks, walls, or vehicles for stationary setups.
Rigging Options: Mounts seamlessly onto cameras, cages, or extension poles for mobile handheld shooting and dynamic scenes.
